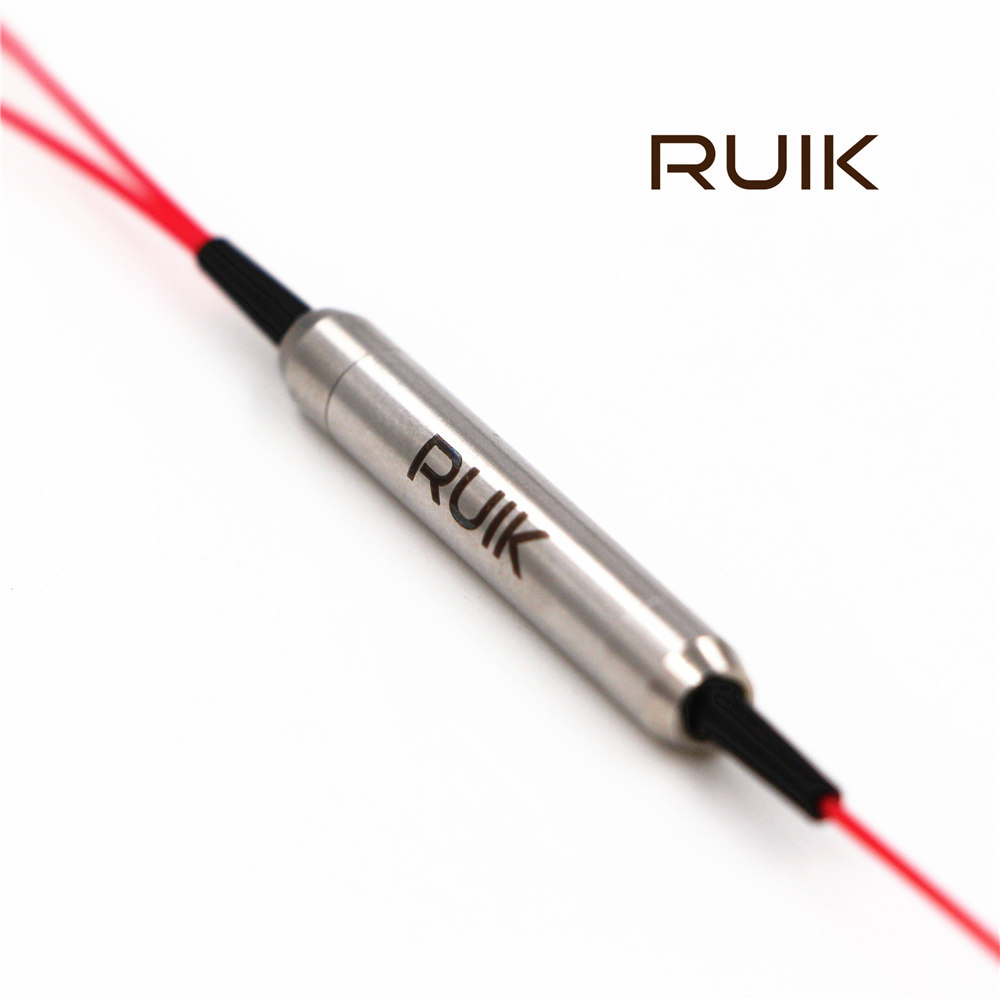

Features

Applications

Low Insertion Loss

Compact Fiber Amplifiers

High Return Loss

Compact Fiber Optical System

High Extinction Ratio

Fiber Laser

High Isolation

Fiber Sensor

Specifications

Parameter

Unit

Value

Stage

-

Single

Dual

Operating Wavelength Range

nm

1530~1570

Max. Excess Loss

dB

1.0

1.2

Signal Tap Ratio

%

1±0.2%, 5±1%, 50±2%

1±0.2%, 5±1%, 50±2%

Typ. Peak Isolation

dB

40

52

Min. Isolation at 23℃

dB

28

45

Min. Extinction Ratio at 23℃

dB

20

Min. Return Loss

dB

50

Max. Optical Power(CW)

mW

500

Max. Tensile Load

N

5

Operating Temperature

℃

0~+70

Storage Temperature

℃

-40~+85

For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.

The default connector key is aligned to slow axis.

    PMTIS-1111-2334-555-666-789-AAA

1111

-Center Wavelength:

1550=1550nm,......

2

-Stage:

S=Single-core stage, D=Dual-core stage

33

-Tap ratio:

01=1%, 02=2%, ......, 50=50%

4

-Axis Alignment:

1=Option 1, 2=Option 2, 3=Option 3, 4=Option 4, 5=Option 5

555

-Fiber Type for In & Out:

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

666

Fiber Type for Tap:

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

7

-Package Dimension：

0=φ5.5x35mm, S=Specified

8

-Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube

9

-Fiber Length:

0=0.8m,1=1m

AAA

-Connector for In, Out, Tap:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
