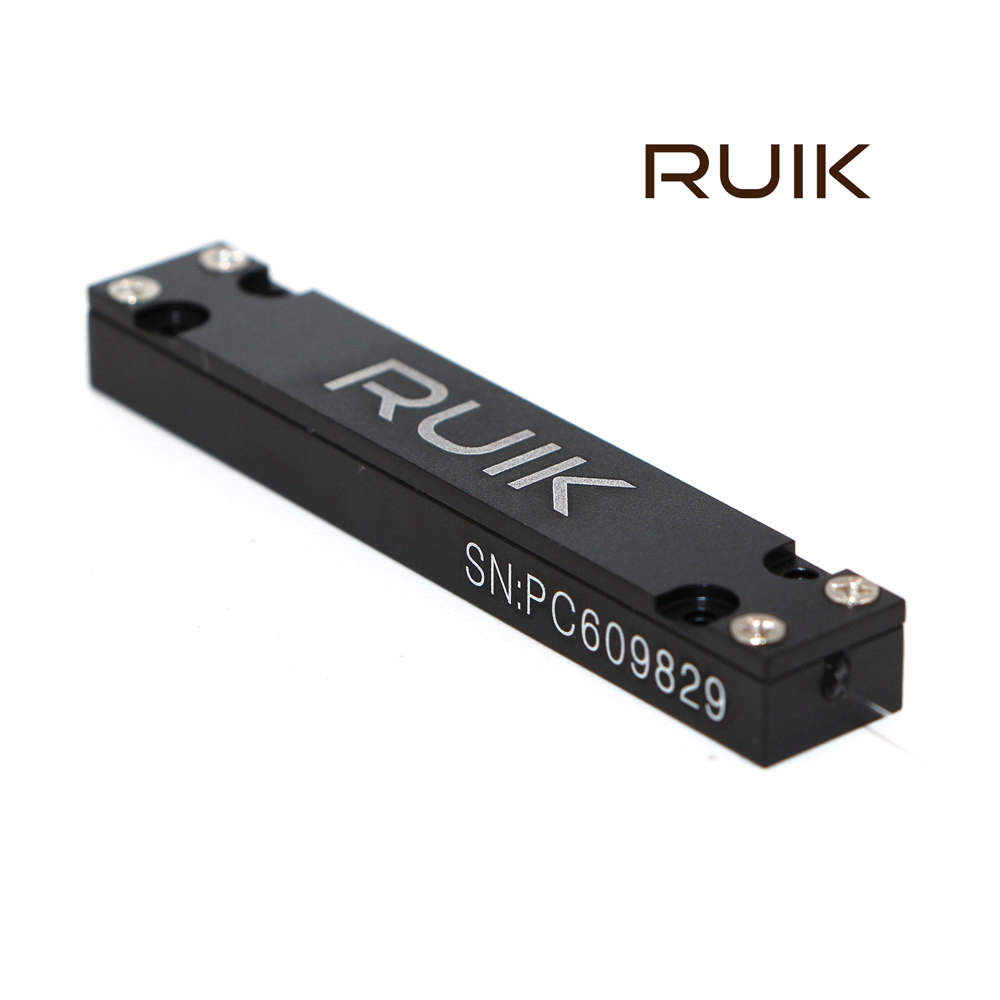

Features

Applications

         High Transfer Efficiency

         High Power Fiber Laser

         High Power

         Fiber Amplifier

         Stable and Reliable

         Custom Configurations Available

Specifications

Parameters

Value

Port Configuration

1x1

Signal Wavelength

1030~1080nm or 1450~1600nm

SMA Fiber

6/125

10/125

10/125

6/125

20/250

62.5/125

LMA Fiber

10/125

20/125

25/250

20/400

30/250

105/125

Signal IL for Forward Route

0.3dB

0.4dB

0.5dB

0.5dB

0.2dB

-

Signal IL for Backward Route

0.3dB

0.5dB

0.7dB

0.7dB

0.2dB

2.0dB

Total Handling Power

10W

50W

10W

Polarization Extinction Ratio

18dB(PM Fiber Type)

Return Loss

45dB

Package Dimension

D1,D2,D3,D4

Operating Temperature

-5~+70

Storage Temperature

-40~+85

Ordering Information

    MFA-111-222-333-44-5-6-777

11

- Port Configuration:

1X1=1X1

222

-Fiber Type for Input:

019=Nufern LMA-GDF-10/125-M, 021=Nufern LMA-GDF-20/130-M

031=Nufern LMA-GDF-30/250-M, 044=Nufern LMA-GDF-20/400-M

015=Nufern PM1060L-FA, 020=Nufern PLMA-GDF-20/130

030=Nufern PLMA-GDF-30/250-M, 035=Nufern PLMA-GDF-20/400-M

333

- Fiber Type for Output:

019=Nufern LMA-GDF-10/125-M, 021=Nufern LMA-GDF-20/130-M

031=Nufern LMA-GDF-30/250-M, 044=Nufern LMA-GDF-20/400-M

015=Nufern PM1060L-FA, 020=Nufern PLMA-GDF-20/130

030=Nufern PLMA-GDF-30/250-M, 035=Nufern PLMA-GDF-20/400-M

44

- Package Dimension:

D1,D2,D3,D4,D5,D6,D7, S= Specified

5

-Pigtail Type:

0=250um bare fiber, 1=900um loose tube

6

-Fiber Type:

0=0.8m, 1=1.0m

777

-Handling Power/Per Pump:

005=5W, 010=10W, 100=100W, 200=200W
