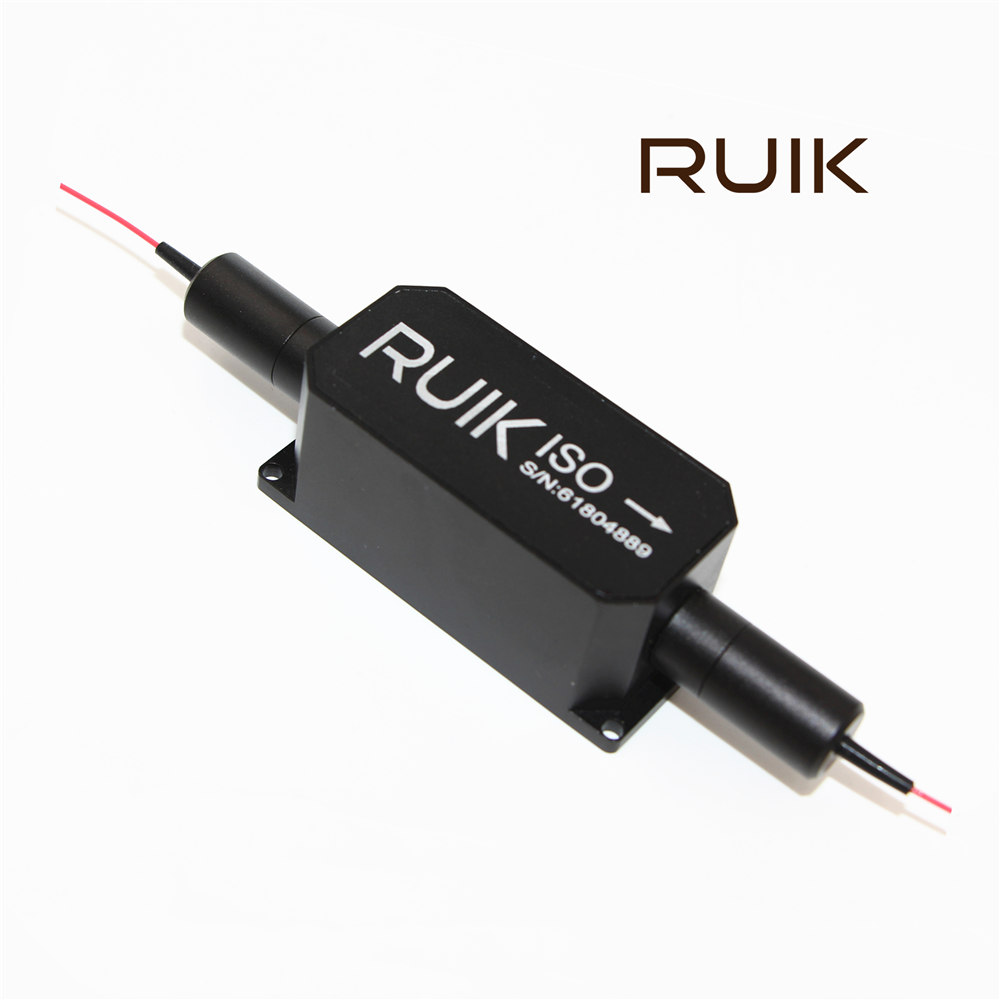

Specifications

Parameter

Unit

Value

Signal Wavelength Range

nm

1064±10 or 1030±10

Max. Excess Loss, λ_c, at 23℃ (Input to Output)

dB

1.7+the theoretical value

Min. Signal Isolation, λ_c, at 23℃(Output to Input)

dB

25

Isolation for Channels

Signal Channel

dB

30

Pump Channel

dB

15

Signal Tap Ratio

%

1,5,10,50 or specified

Pump Channel Wavelength Range

nm

960~990

Max. Insertion Loss (Pump Channel)

dB

0.8

Max. Polarization Dependent Loss at 23℃, only for PI

dB

0.15

Min. Return Loss

dB

50

Max. Optical Power(CW)

W

1,2，....10

Max. Tensile Load

N

5

Operating Temperature

℃

5~+55

Storage Temperature

℃

-0~+75

      TIWDM-1111-2344-555-666-777-89A-BBBB-CCDD

1111

-Operating Wavelength:

1598=T1550/R980nm，0398=T1030/980nm

2

-Axis Alignment:

1=Option 1, 2=Option 2, 3=Option 3, 4=Option 4, 5=Option 5, 6=Option 6

3

-Core Stage:

S=Single-core Stage, D=Dual-core Stage

44

-Tap ratio:

01=1%, 02=2%, ......, 50=50%

555

-Fiber type for In & Out:

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

666

-Fiber type for Pump：

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

777

-Fiber type for Tap：

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

8

-Package Dimension:

0=58x28x26mm, 1=150x28x26mm

9

-Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube

A

-Fiber Length:

0=0.8m,1=1m

BBBB

-Connector for In,Out,Pump,Tap:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC

CC

-Average Power:

00=300mW, 01=1W, 02=2W,......, 05=5W.............,20=20W

DD

-Peak Power

10=10kW, 20=20kW
