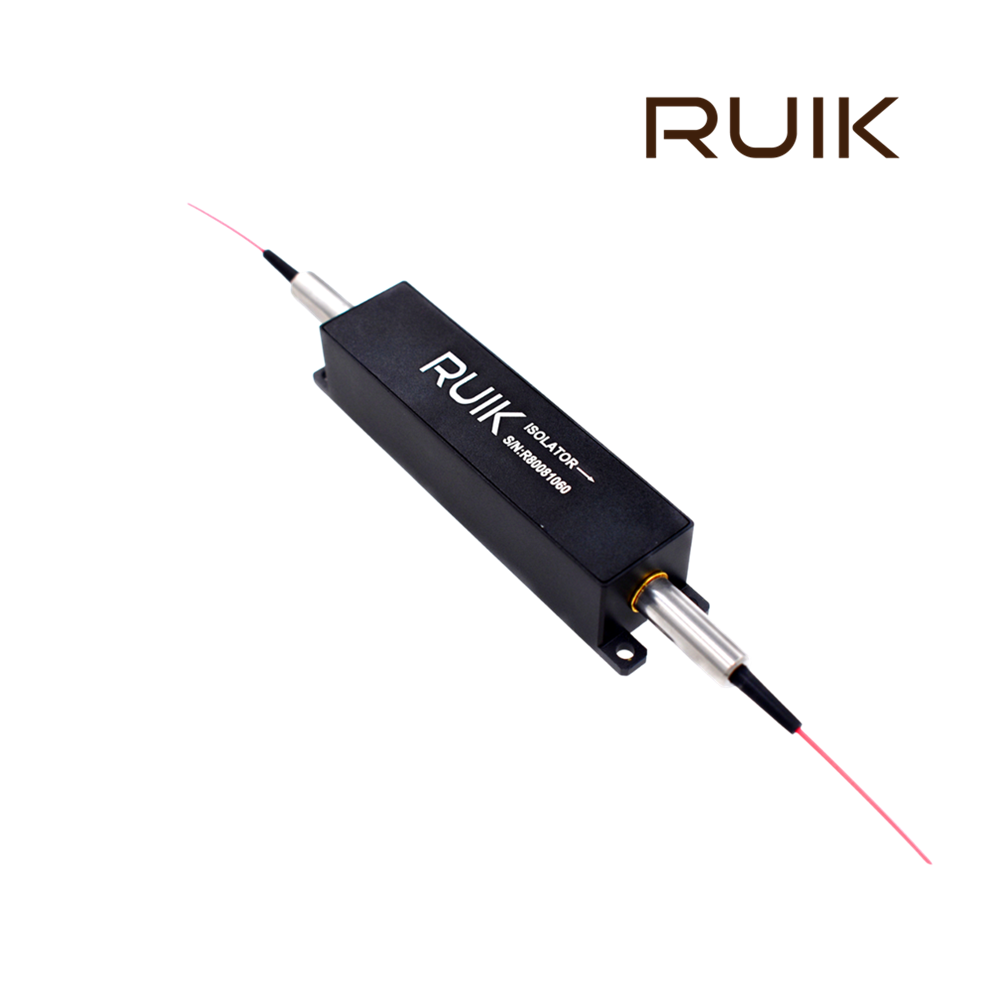

Features

Applications

Low Insertion Loss

Testing Instrument

High Return Loss

Fiber Laser

High Isolation

High stability & Reliability

Specifications

Parameters

Unit

Value

Type

-

Polarization Insensitive

Center Wavelength

nm

980

Operating Wavelength Range

nm

±5

Typ. Peak Isolation at 23℃

dB

30

Min. Isolation at 23℃

dB

26

Typ. Insertion Loss at 23℃

dB

0.8

Max. Insertion Loss at 23℃

dB

1.0

Max. Polarization Dependent Loss at 23℃

dB

0.15

Min. Return Loss at 23℃ (Input /Output)

dB

50

Max. Optical Power (CW)

W

1, 2, 5, 10 or Specified

Package Dimension

mm

65x20x16

Max. Peak Power for ns Pulse

kW

10 or Specified

Max. Tensile Load

N

5

Operating Temperature

℃

+10~+50

Storage Temperature

℃

0~+60

*Above specifications are for device without connector.

*For device with connector, the handing power is 1W only, IL is 0.3dB higher, RL is 5dB lower.

*The default connector key is aligned to slow axis.

Ordering Information

CHPIIS-①①①①-②③-④④④-⑤⑥-⑦-⑧⑧-⑨⑨⑩⑩

①①①①

- Wavelength:

 980=980nm, SSSS=Specified

②

- Core Type:

 S=Single-Core

③

- Working Axis:

 N=Non-PM

④④④

- Fiber Type:

 004=Hi1060, 019=LMA-GDF-10/125-M, SSS=Specified

⑤

- Package Dimensions:

 1=65x20x16mm

⑥

- Pigtail Type:

 0=bare fiber, 1=900um loose tube

⑦

- Fiber Length:

 0.8=0.8m, 1.0=1.0m, S=Specified

⑧⑧

- Connector Type:

 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified

⑨⑨

- Average Power:

 01=1W, 02=2W, 05=5W, 10=10W, SS=Specified

⑩⑩

- Peak Power:

 00=Continuous Wave, 10=10kW, 20=20kW
