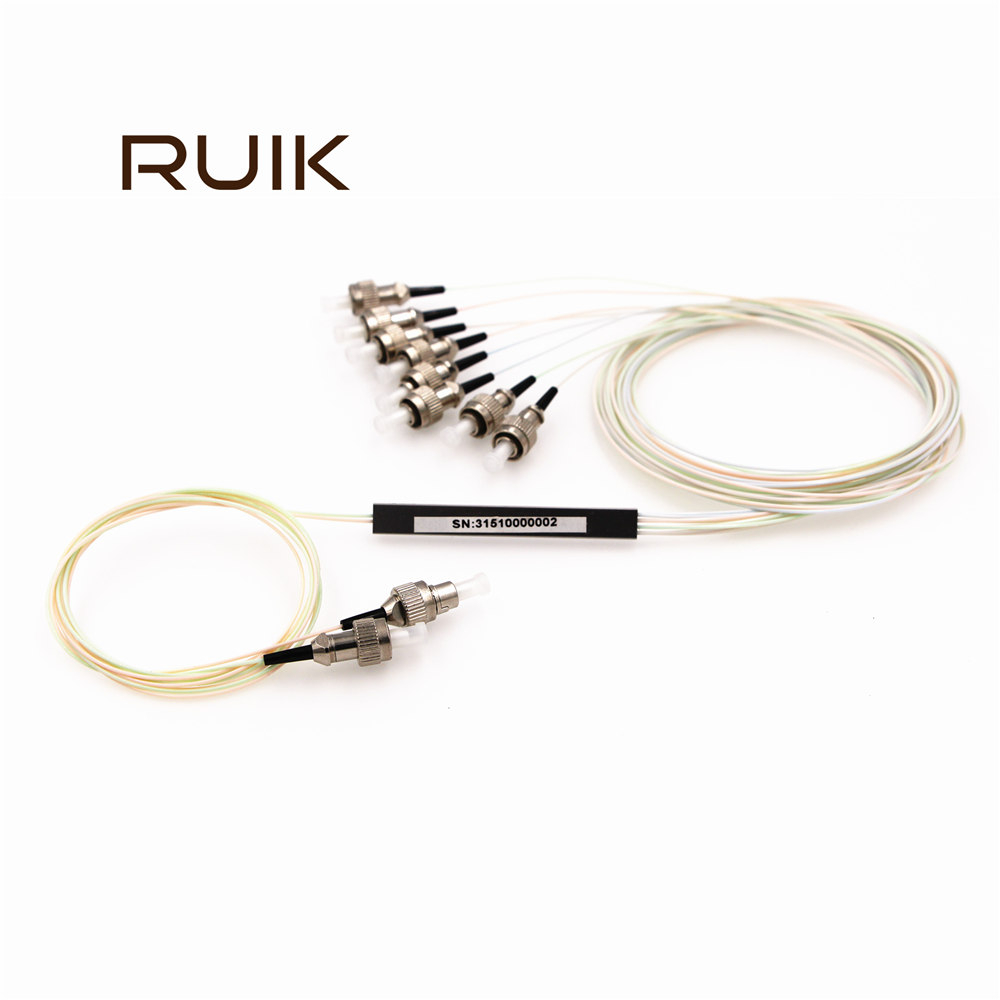

Features

Applications

Low Insertion Loss

EDFA & Raman Amplifier

High Return Loss

Fiber Sensor

High Extinction Ratio

Fiber Optical Instrument

High Reliability

Power Monitoring System

High Stability

Specifications

Parameter

Unit

Value

Type

-

1x4

1x8

1x16

Center Wavelength

nm

1520-1570

Max. Insertion Loss

dB

7.3

10.5

13.7

Max.Wavelength Dependent Loss

dB

0.6

0.6

1.0

Uniformity

dB

0.6

0.8

1.2

Min. Extinction Ratio at 23℃

dB

18

Min. Return Loss

dB

50

Max. Insertion Temperature Stability(-40～85 ℃)

dB

0.5

Max. Optical Power(CW)

mW

300

Max. Tensile Load

N

5

Fiber Type

-

PM Panda fiber

Operating Temperature

℃

-5~+70

Storage Temperature

℃

-40~+85

Mini Package Dimensions

mm

60x7x4

60x7x4

60x12x4

Package Dimensions(ABS Box)

mm

100x80x10

100x80x10

120x80x18

For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.

The default connector key is aligned to slow axis.

    PMPLC-1111-2223-444-567-8

1111

-Center Wavelength:

1550=1550nm, 1310=1310nm

222

-Port Number:

102=1x2, 104=1x4,......, 108=1x8,........116=1x16

3

-Axis Alignment:

B=Both axis working, F=Slow axis working, Fast axis blocked(only for ABS box)

444

-Fiber Type:

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

5

-Package Dimension:

S=Mini size (only bare fiber & 900μm loose tube), L= ABS box

6

-Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube

7

-Fiber Length:

0=0.8m,1=1m

8

-Connector Type:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC
