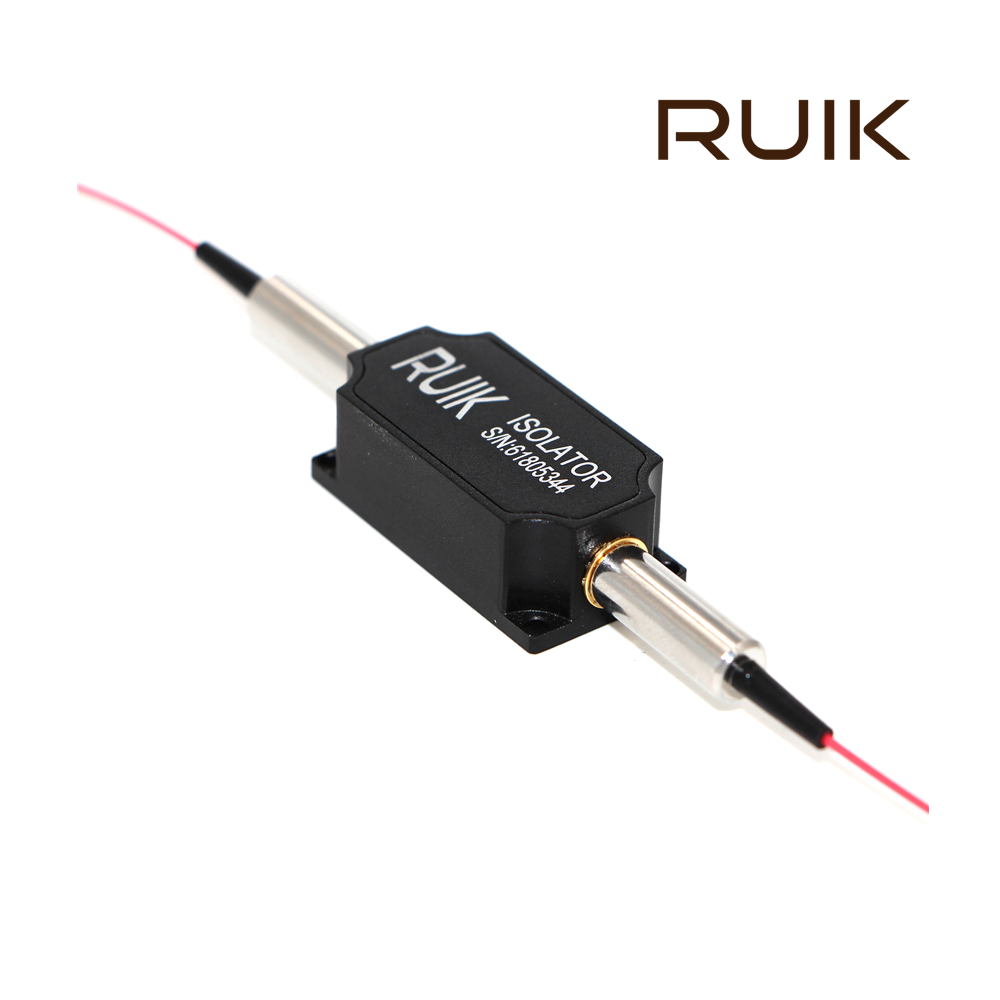

Features

Applications

Low Insertion Loss

Testing Instrument

High Return Loss

MOPA Fiber Laser

High Isolation

Fiber Laser

High Stability & Reliability

Specifications

Parameters

Unit

Value

Stage

-

Single

Dual

Center Wavelength

nm

1064

Operating Wavelength Range

nm

±5

Typ. Peak Isolation at 23℃

dB

35

50

Min. Isolation at 23℃

dB

27

45

Max. Insertion Loss at 23℃

dB

1.7

3.8

Max. Insertion Loss at 23℃ and Input Power 300mW

dB

2.0

4.0

Max. Insertion Loss at 23℃ and Input Power 1W

dB

2.5

4.5

Max. Insertion Loss at 23℃ and Input Power 2W

dB

3.0

5.5

Min. Extinction Ratio at 23℃

dB

20

Min. Return Loss at 23℃ (Input /Output)

dB

45

Max. Optical Power (CW)

W

0.5, 1, 2

Max. Peak Power for ns Pulse

kW

10

Package Dimensions

mm

33x17x11.5

60x17x11.5

Max. Tensile Load

N

5

Operating Temperature

℃

+10 to +50

Storage Temperature

℃

0 to +60

*Above specifications are for device without connector.

*For device with connectors, the Max. handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

*The default connector key is aligned to slow axis.

Ordering Information

  PMIS-①①①①-②③-④④④-⑤⑥-⑦-⑧⑧-⑨⑨⑩⑩

①①①①

- Wavelength:

 1064=1064nm, SSSS=Specified

      ②

- Core Type:

 S=Single-core stage, D=Dual-core stage

      ③

- Working Axis:

 B=Both axis working, F=Fast axis blocked

  ④④④

- Fiber Type:

 003=PM980, 014=PM1060L, SSS=Specified

      ⑤

- Package Dimensions:

 0=33x17x11.5mm, 1=60x17x11.5mm

      ⑥

- Pigtail Type:

 0=250μm bare fiber, 1=900μm loose tube

      ⑦

- Fiber Length:

 0.8=0.8m, 1.0=1m, S=Specified

    ⑧⑧

- Connector Type:

 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified

⑨⑨

- Average Power:

 00=500mW, 01=1W, 02=2W

⑩⑩

- Peak Power:

 00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, SS=Specified
