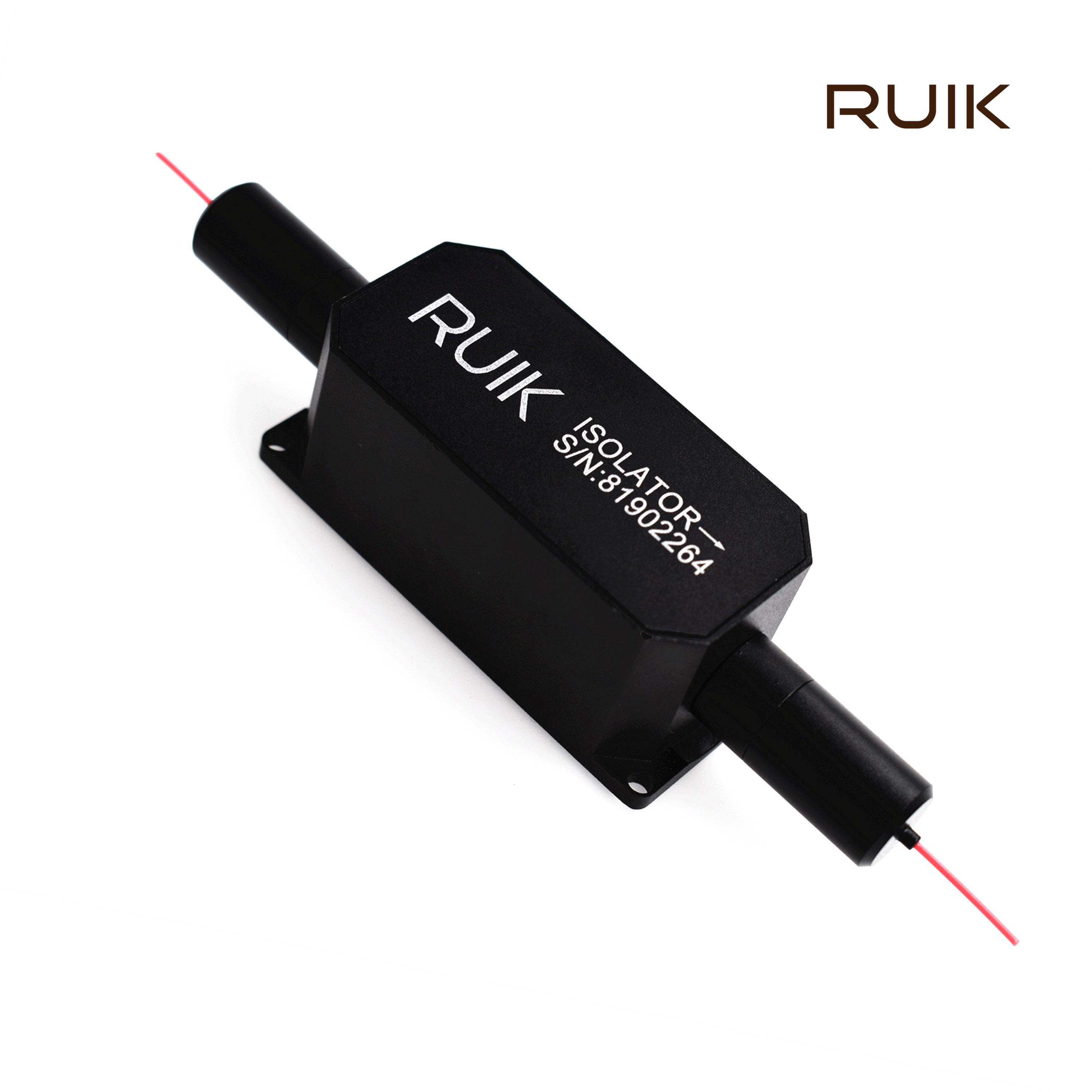

Features

Applications

Low Insertion Loss

PM Fiber Amplifier

High Return Loss

Testing Instrument

High Isolation

MOPA Fiber Laser

High stability & Reliability

Fiber Laser

Specifications

Parameters

Unit

Value

Center Wavelength

nm

1064

Operating Wavelength Range

nm

±5

Typ. Peak Isolation at 23℃

dB

30

Min. Isolation at 23℃

dB

25

Typ. Insertion Loss at 23℃

dB

0.8

Max. Insertion Loss at 23℃

dB

1.0

Min. Extinction Ratio at 23℃

dB

20

Min. Return Loss (Input /Output)

dB

45

Max. Average Optical Power

W

  50

100

Package Dimension

mm

82x38x35

Max. Peak Power for ns Pulse

kW

10

Max. Tensile Load

N

5

Operating Temperature

℃

+10~+50

Storage Temperature

℃

0~+60

*Above specifications are for device without connector.

*For device with connector, the handling power will be only 1W,  IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

*The default connector key is aligned to slow axis.

*Above specifications are for device without connector.

Ordering Information

HPMIS-1111-23-444-56-7-88-99AA

1111 - Wavelength:

1064=1064nm, SSSS=Specify

   2 - Core Type:

S=Single-Core

   3 - Working Axis:

B=Both axis working, F=Fast axis blocked

 444 - Fiber Type:

020=PLMA-GDF-20/130-M, 024=PLMA-GDF-25/250-M, SSS=Specify

   5 - Package Dimension:

1=82x38x35mm

   6 - Pigtail Type:

0=bare fiber, 1=900um loose tube, S=Specify

   7 - Fiber Length:

0.75=0.75m, 1.0=1.0m. S=Specify

  88 - Connector Type:

N=None

  99 - Average Power:

50=50W, 100=100W, SS=Specify

  AA - Peak Power:

00=Continuous Wave, 10=10kW, 20=20kW
