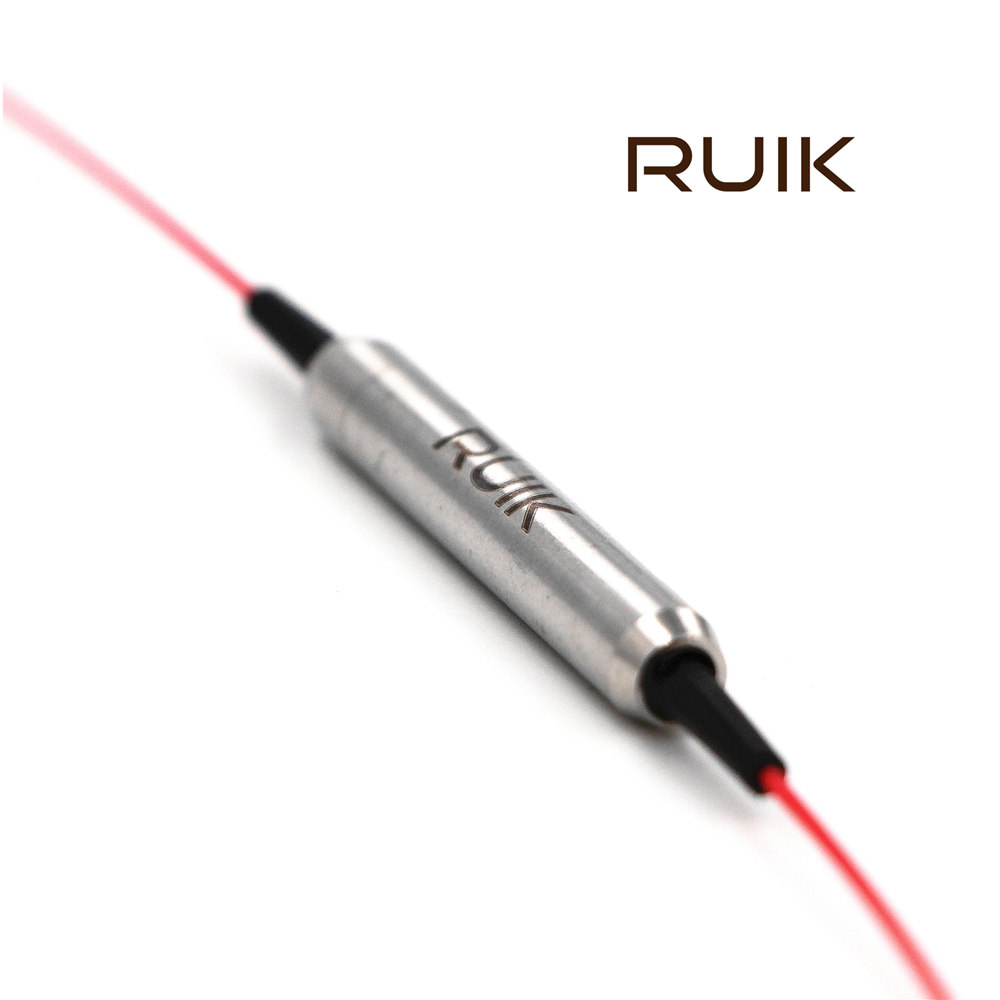

Features

Applications

Low Insertion Loss

MOPA Fiber Laser

High Return Loss

Test Instruments

High Extinction Ratio

Fiber Laser

High Isolation

Research

High Stability & Reliability

Specifications

Parameter

Unit

Value

Stage

-

Single

Dual

Center Wavelength

nm

1064

Operating Wavelength Range

nm

±5

Typ. Peak Isolation at 23℃

dB

35

52

Min. Isolation at 23℃

dB

28

45

Typ. Insertion Loss at 23℃

dB

1.5

2.4

Max. Insertion Loss at 23℃

dB

1.8

3.2

Min. Return Loss at 23℃ (input/output)

dB

50/50

Min. Extinction Ratio at 23℃

 Both axis working

dB

20

 Fast axis blocked

dB

22

Max. Optical Power (CW)

mW

300

Max. Tensile Load

N

5

Fiber Type

-

PM Panda fiber

Operating Temperature

℃

-5~+50

Storage Temperature

℃

-40~+85

*Above specifications are for device without connector.

*For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

*The default connector key is aligned to slow axis.

Ordering Information

PMIS-①①①①-②③-④④④-⑤⑥-⑦-⑧⑧

①①①①

- Wavelength:

 1064=1064nm, SSSS=Specified

②

- Core Type:

 S=Single-core stage, D=Dual-core stage

③

- Working Axis:

 B=Both axis working, F=Fast axis blocked

④④④

- Fiber Type:

 003=PM980, 018=PLMA-GDF-10/125-M, SSS=Specified

⑤

- Package:

 0=φ5.5x35mm

⑥

- Dimensions:

 0=bare fiber, 1=900μm loose tube, S=Specified

⑦

- Pigtail Type:

 0.8=0.8m, 1.0=1m, S=Specified

⑧⑧

- Connector Type:

 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
