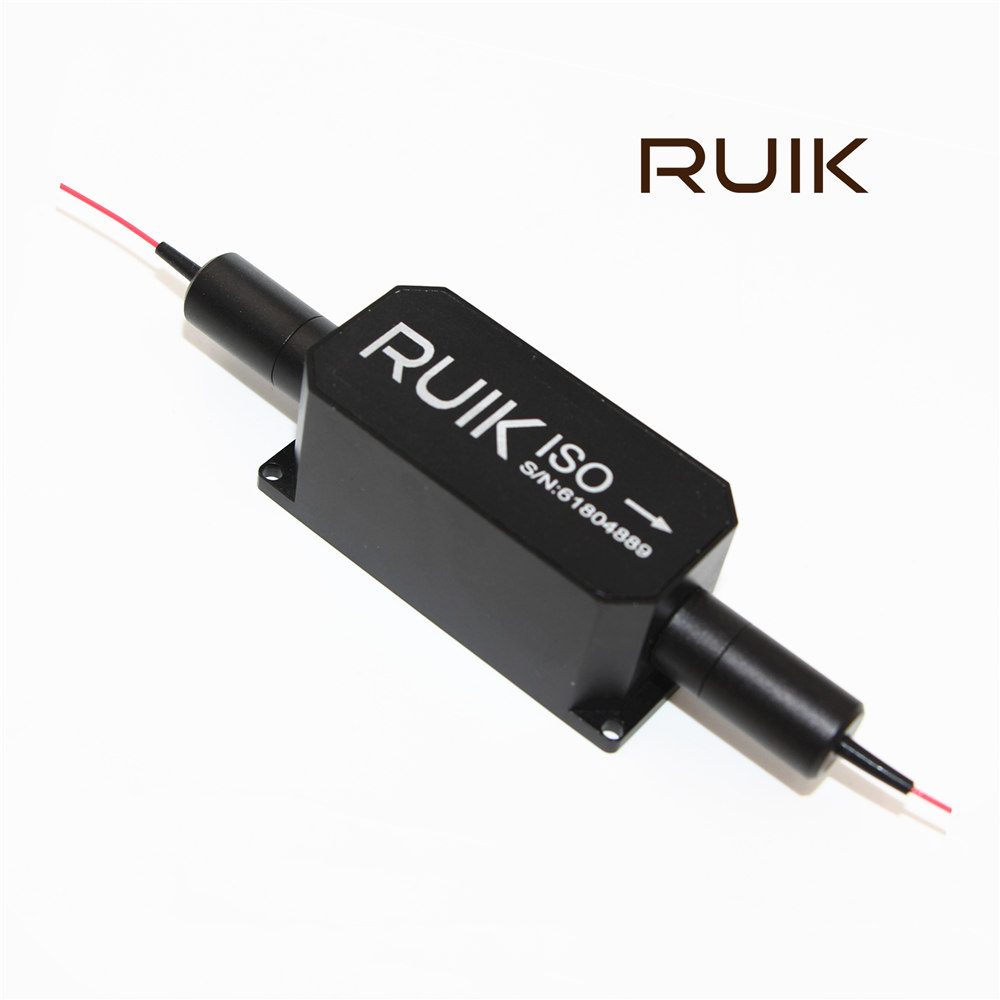

Features

Applications

Low Insertion Loss

PM Fiber Amplifier

High Return Loss

Testing Instrument

High Isolation

Mopa Fiber Laser

High stability & Reliability

Fiber Laser

Specifications

Parameters

Unit

Value

Center Wavelength

nm

1030

Operating Wavelength Range

nm

±5

Typ. Peak Isolation at 23℃

dB

30

Min. Isolation at 23℃

dB

25

Typ. Insertion Loss at 23℃

dB

0.8

Max. Insertion Loss at 23℃

dB

1.0

Min. Extinction Ratio at 23℃, only for PM

dB

20

Min. Return Loss(Input /Output)

dB

45

Max. Average Optical Power

W

20 or Specified

Max. Peak Power for ns Pulse

kW

10 or Specified

Max. Tensile Load

N

5

Package Dimension

mm

58x28x26

Operating Temperature

℃

+10~+50

Storage Temperature

℃

0~+60

Ordering Information

    PMIS-1111-23-444-567-88-99AA

1064

-Center Wavelength:

1064=1064nm, 1030=1030nm, 0980=980nm, 0850=850nm, 0780=780nm

2

-Core Type:

S=Single-Core

3

-Axis Alignment for PM:

F=Slow axis working, Fast axis blocked, B=Both of axis working

444

-Fiber Type:

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

5

-Package Dimension:

0=58x28x26mm, S=Specified

6

-Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube

7

-Fiber Length:

0=0.8m,1=1m

88

-Connector Type:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None

99

-Average Power:

00=500mW, 01=1W, 02=2W,......, 05=5W, 10=10W

AA

-Peak Power:

10=10kW, 20=20kW
