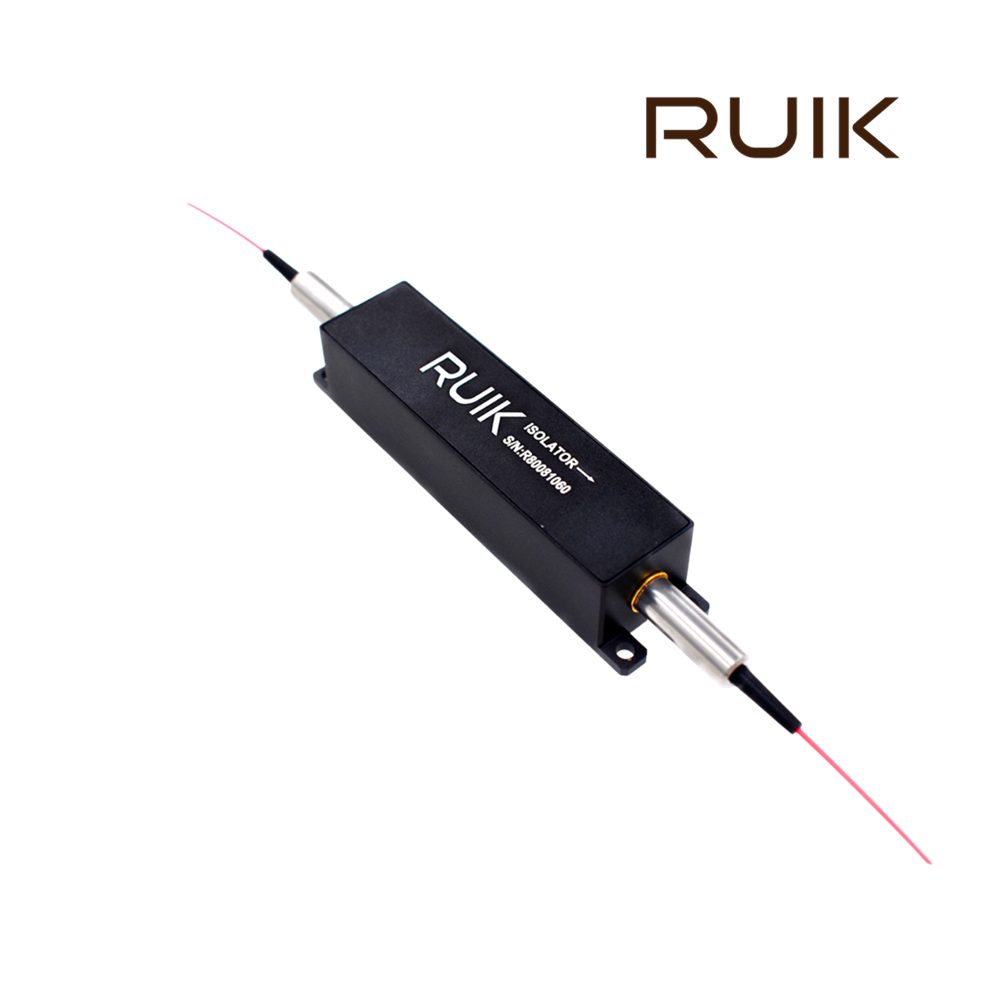

Name:Compact size 1064nm 10W High Power Fiber Isolator (TGG Based)
Views : 2695







Product Details

1064nm Compact Size In-line Isolator (up to 10W)

Features

Applications

Low Insertion Loss

PM Fiber Amplifier

High Return Loss

Testing Instrument

High Isolation

MOPA Fiber Laser

High stability & Reliability

Fiber Laser

Specifications

Parameters

Unit

Value

Center Wavelength

nm

1064, 1030

Operating Wavelength Range

nm

±5

Typ. Peak Isolation at 23℃

dB

30

Min. Isolation at 23℃

dB

26

Typ. Insertion Loss at 23℃

dB

0.8

Max. Insertion Loss at 23℃

dB

1.0

Min. Extinction Ratio at 23℃ (PM Fiber Type)

dB

20

Max. Polarization Dependent Loss at 23℃ (SM Fiber Type)

dB

0.15

Min. Return Loss at 23℃ (Input /Output)

dB

45

Max. Average Optical Power

W

1, 2, 5, 10 or Specified

Package Dimension

mm

65x17x16

Max. Peak Power for ns Pulse

kW

10 or Specified

Max. Tensile Load

N

5

Operating Temperature

+10~+50

Storage Temperature

0~+60


*Above specifications are for device without connector.
*For device with connector, the handling power will be only 1W,  IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
*The default connector key is aligned to slow axis.


Ordering Information

CHPMIS-1111-23-444-56-7-88-99AA (PM Fiber Type)  /  CHPIIS-1111-23-444-56-7-88-99AA (SM Fiber Type)

1111 - Wavelength:

 1064=1064nm, 1030=1030nm, SSSS=Specified

   2 - Core Type:

 S=Single-Core

   3 - Working Axis:

 B=Both axis working, F=Fast axis blocked, N=Non-PM

 444 - Fiber Type:

 003=PM980, 004=HI1060, 018=PLMA-GDF-10/125, SSS=Specified

   5 - Package Dimensions:

 0=65x17x16mm

   6 - Pigtail Type:

 0=bare fiber, 1=900um loose tube

   7 - Fiber Length:

 0.8=0.8m, 1.0=1.0m, S=Specified

  88 - Connector Type:

 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified

  99 - Average Power:

 00=300mW, 01=1W, 02=2W, 05=5W, 10=10W, SS=Specified

  AA - Peak Power:

 00=Continuous Wave, 10=10kW, 20=20kW


Part No. Example: CHPMIS-1064-SF-003-00-1.0-NN-0510
Description: 1064nm Compact size High Power Polarization Maintaining Isolator, Single-Core, Fast axis blocked, PM980 fiber, 65x17x16mm, bare fiber, 1m, no connector, 5W average power, 10W peak power.


For
Custom Parts, please provide detailed description for your requirement.
