High Power Component
Name:1064nm Bandpass Filter
Views : 3679







Product Details

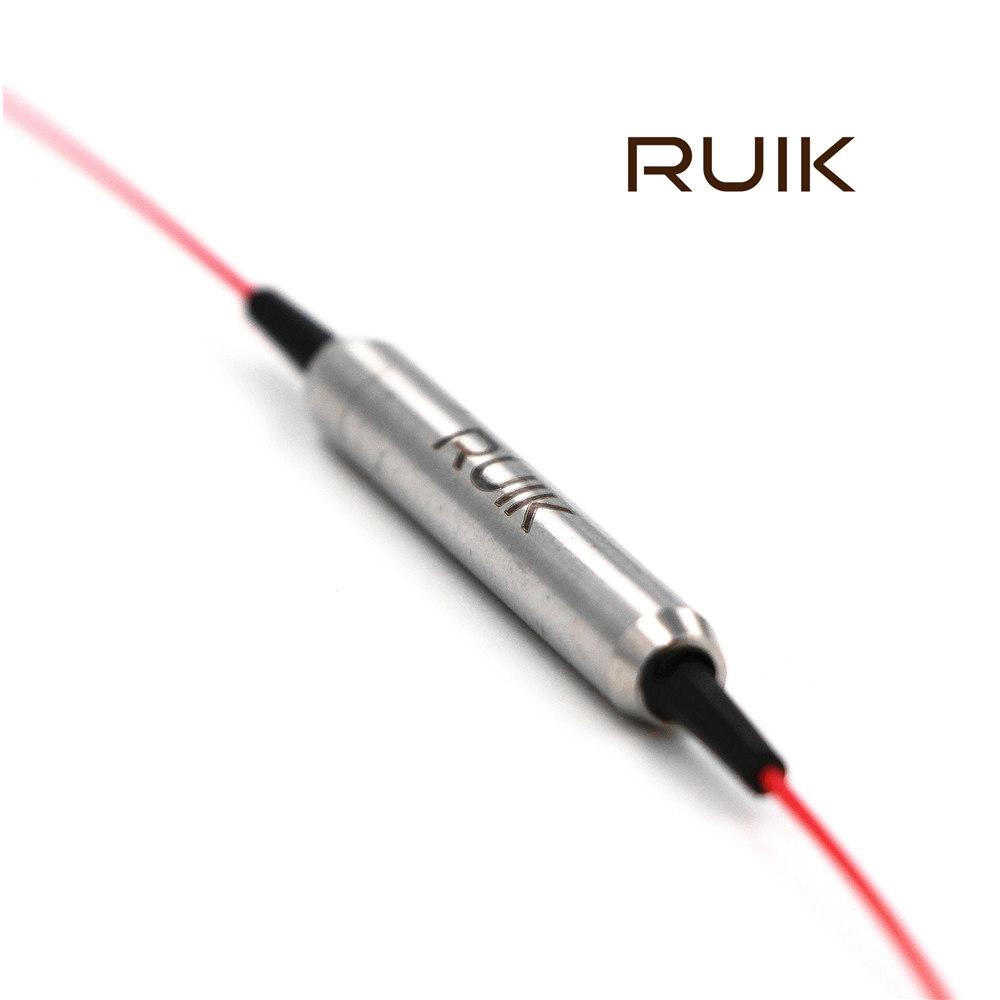

1064nm Bandpass Filter

Features

Applications

Low Insertion Loss

Fiber Laser

High Return Loss

Test Instrument

High Extinction Ratio

Fiber Sensor

High Reliability & Stability

EDFA

Specifications

Parameter

Unit

Value

Operating Wavelength

nm

1064

Max. Polarization Dependent Loss at 23℃

dB

20

Min. Return loss

dB

50

Max. Power Handling (CW)

W

20

Max. Pulsed Power

kW

10,or Specified

Max. Tensile Load

N

5

Operating Temperature

0 ~ +65

Storage Temperature

-40 ~ +85

Pass Band Width

nm

2

5

8

Max. Insertion Loss of Pass band

dB

0.8

0.8

0.8

Max. Stop Bandwidth (@-25dB)

nm

10

10

20

For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.

The default connector key is aligned to slow axis.

Ordering Information

    BPF-1111-22-333-456-77-8899

1064

-Center Wavelength:

1064=1064nm

22

-Band Width:

02=2nm, 05=5nm, 08=08nm, 10=10nm

333

-Fiber Type:

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

4

-Package Dimension:

0=φ5.5x35mm, 1=70x12x8, S=Specified

5

-Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube

6

-Fiber Length:

0=0.8m,1=1m

77

-Connector Type:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC

88

-Average Power:

00=500mW, 01=1W,......, 30=30W

99

-Peak Power:

10=10kW, 20=20kW
